Descripción del producto
- PARABOLIC SPRINGS
- TILTING WITH A CYLINDER DIRECT TO THE TRACTOR 55º
- TEMPERED STEEL FLANGES AND SPRINGS
- ZINC-PLATED BOLTS AND SCREWS
- MONOCOQUE BOX WITH LATERAL OF FOLDED METAL SHEET
- TOOL BOX
- STEEL STRUCTURAL TUBE CHASSIS
- CYLINDER, AXLE, SPRINGS AND CHASSIS FOR HEAVY LOADS
- MECHANICAL REST WITH MULTIPLIER CROWN AND BEARING
- PARKING BRAKE
- HYDRAULIC BRAKE FOR WHEEL
- APPROVED ELECTRIC INSTALLATION GALVANISED TRAY
- TRUCK INDUSTRIAL TYRES WITH VENTILATED DISCS 8 AND 10
STUDS - 80*80 FRONT/BACK PILLARS FOR HIGHER RESISTANCE
- BACK DOOR WITH AUTOMATIC DAMPER OPENING MAS PORTON
- MANUAL SIDE OPENING BACK DOOR
- BEFORE PICKLING, A PRIMER COAT AND ENAMEL COAT. FURNACE PAINTING AND DRYING
- POLYURETHANE PAINT

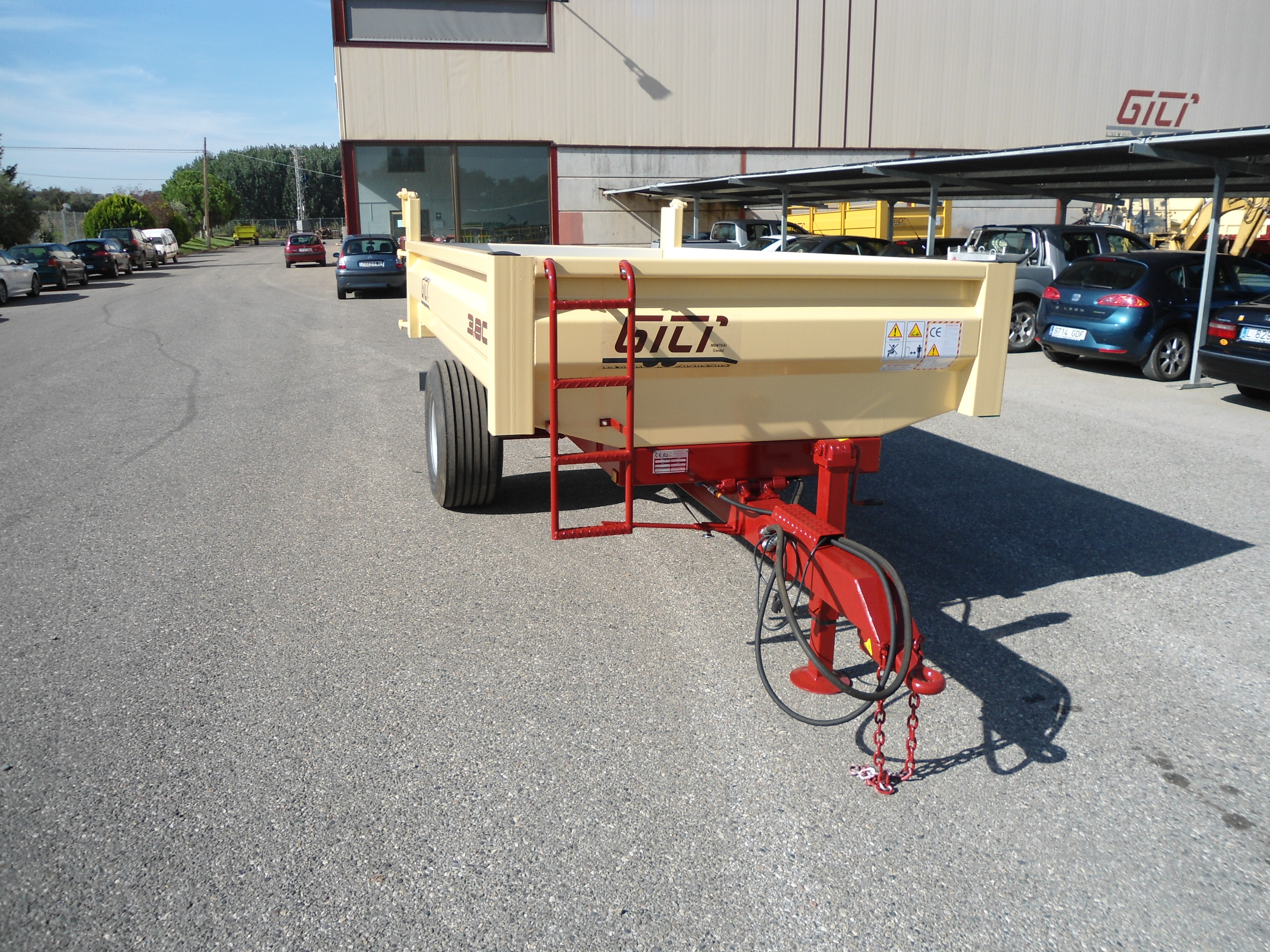

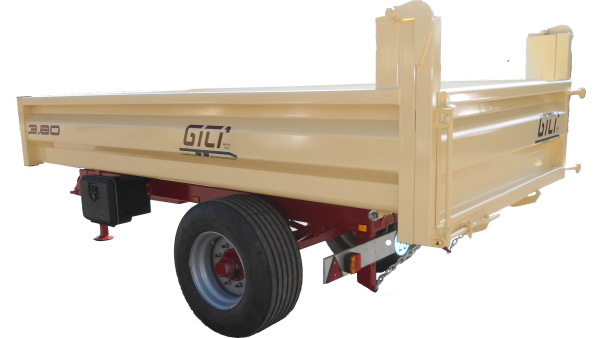

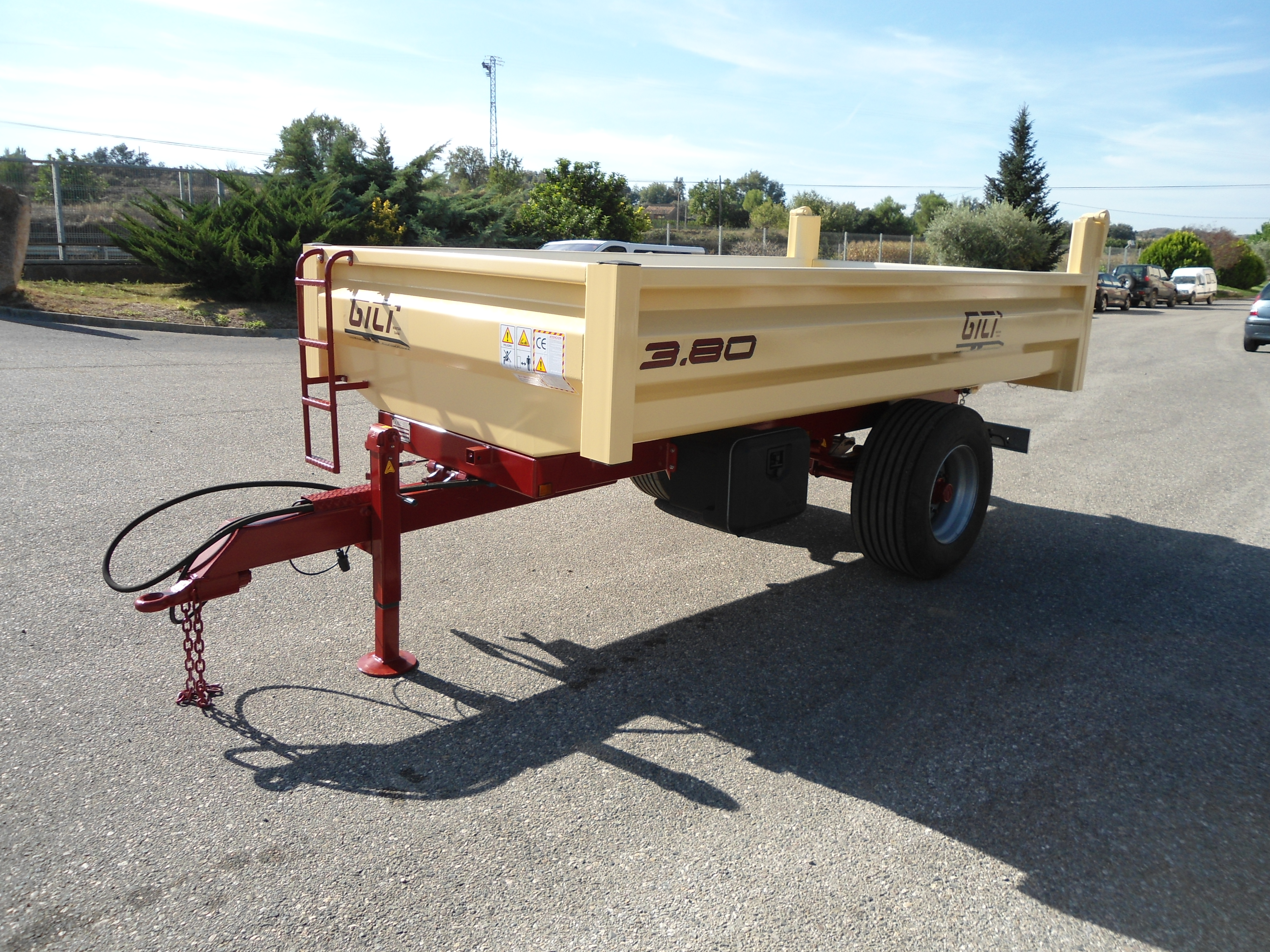

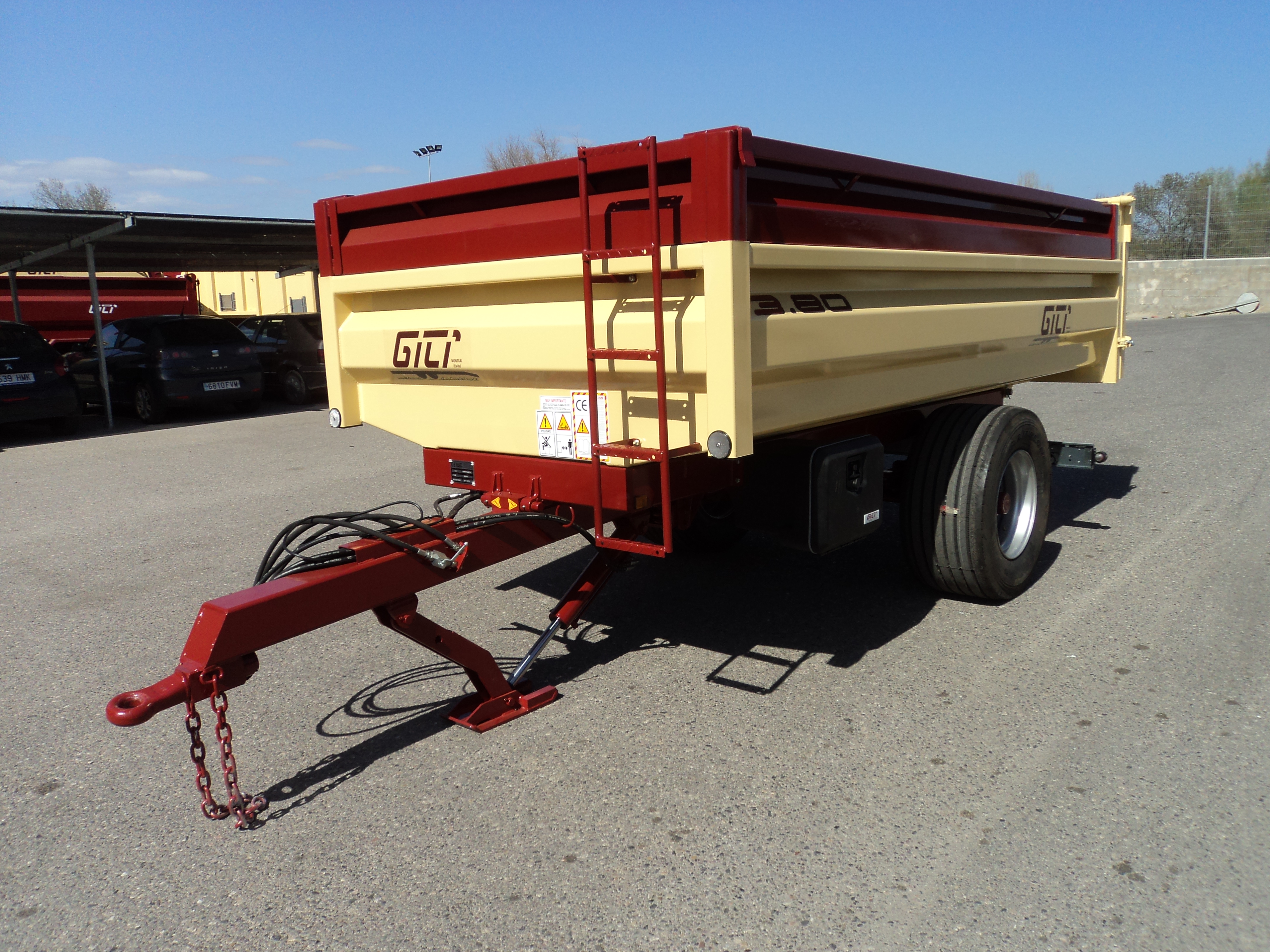

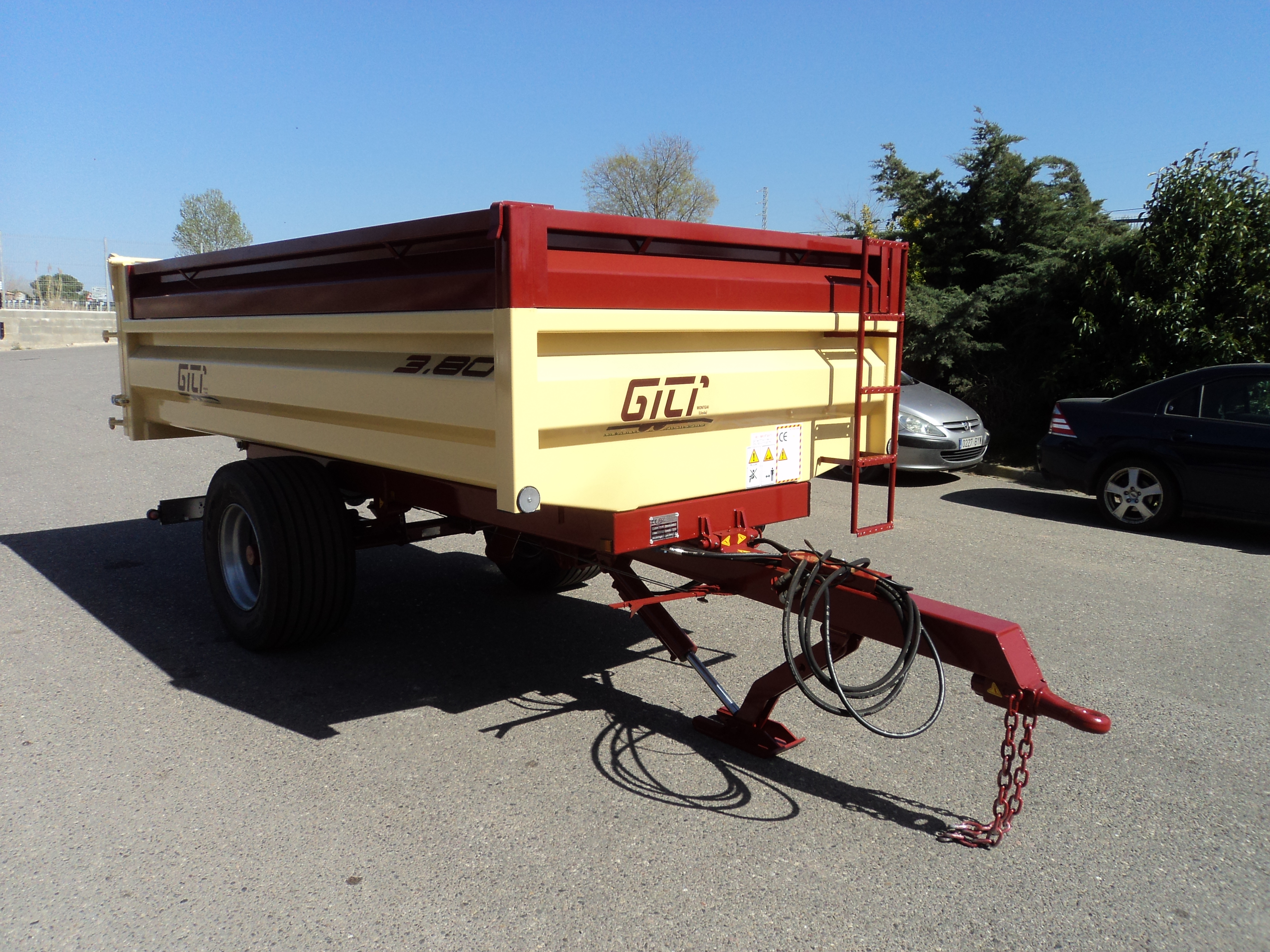

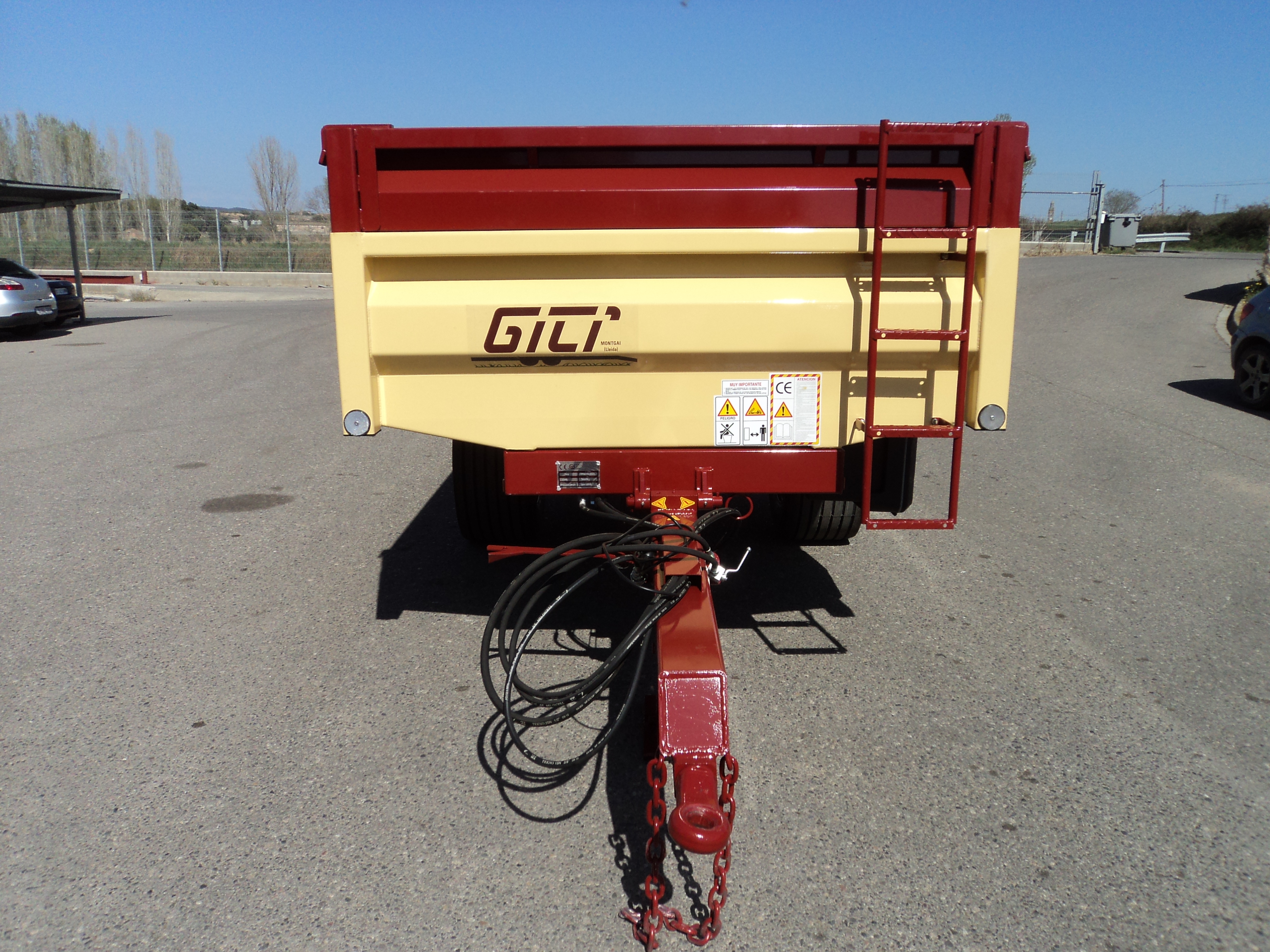

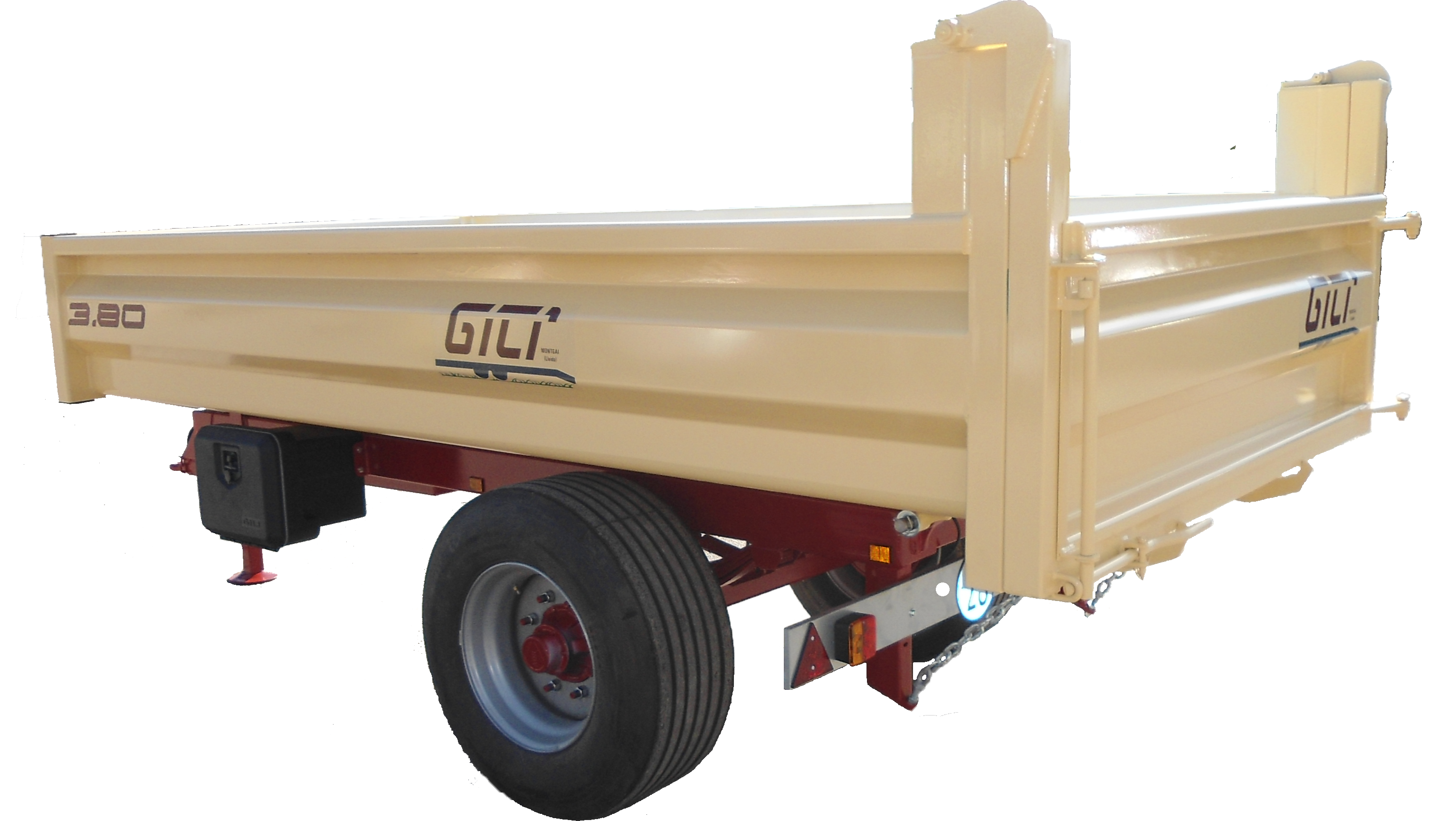

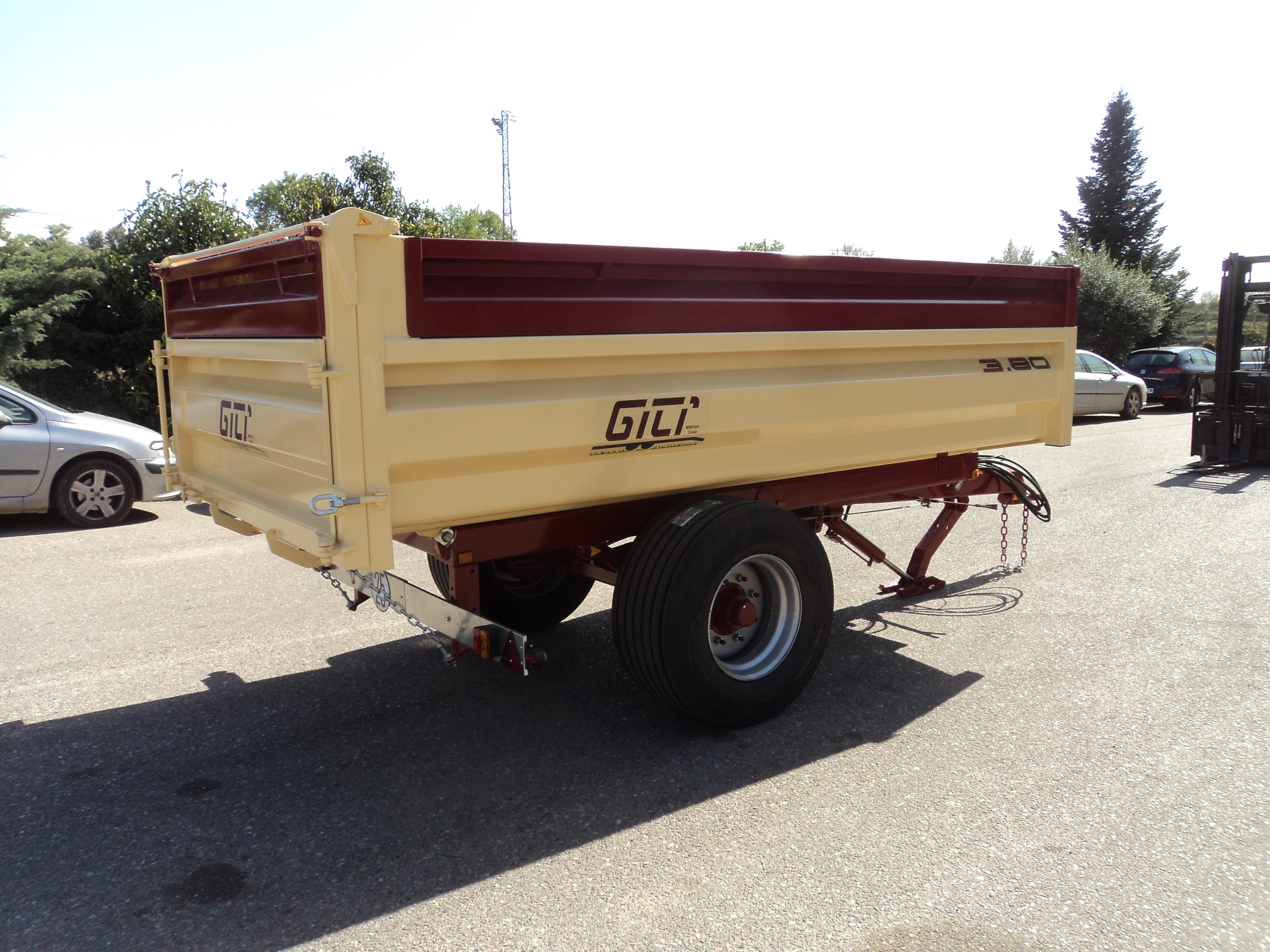

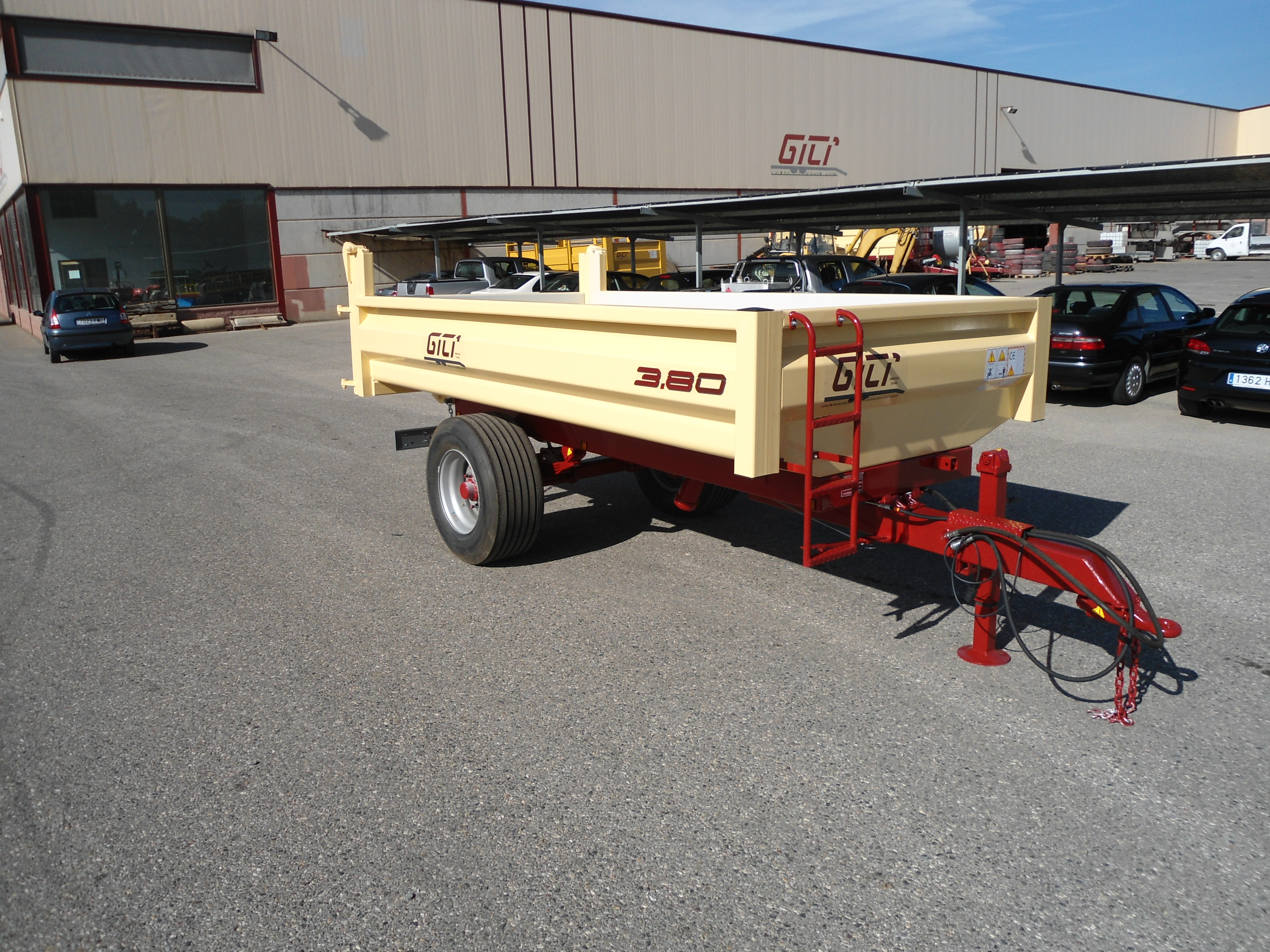

DUMPER TRAILER
FEATURES
| MODEL | 11RHB-10K | BTK-14T |
|---|---|---|
| BOX CUBIC CAPACITY (m³) | 4,30 | 7,25 |
| APPROX. TARE | 3.900 | 4.600 |
| INSIDE BOX LENGTH | 3.800 | 4.500 |
| INSIDE BOX WIDTH | 1.900 | 2.200 |
| SIDE HEIGHT | 600 | 750 |
| SILL PLATE THICKNESS | 11 | 11 |
| SIDE PLATE THICKNESS | 6 | 6 |
| PARABOLIC SPRINGS | 4 LEAVES 70×25 | 6 LEAVES 120×20 |
| Nº OF WHEELS | 2 NEWS | 4 NEWS |
| WHEEL DIMENSIONS | 435/50-R19,5 | 385/65-R22,5 |
| AXLE AND DRUM DIMENSIONS / STUDS AND AXLE PRESSER | 90×75 300×60 – 8 / 1650 |
90×75 350×60 – 8 / 1900 |
| LOWER CHASSIS | 150x100x6 | 200x150x6 |
| UPPER CHASSIS | 150x50x4 | 140x80x6 |
| Nº OF TILTING CYLINDER AND BOTTLE-Nº EXPANSIONS AND LITRES |
1 / 124 – 4 / 10L | 1 / 152 – 5 / 18L |
| APPROX. HEIGHT FROM FLOOR TO GROUND | 1.020 | 1.250 |
